Schematic diagram of the GFA/GFB distributor

1,The lubricant conveyed from the lubrication pump shall be pulled up from the umbrella valve in the GFA/GFB distributor.

2,When the umbrella valve seals the oil outlet port, the oil pressure forces GFA/GFB oil storage block to overcome the spring force to lower  the oil level, and the oil cavity starts to store oil.

3,When GFA/GFB oil storage block is pushed to the top of the oil cavity, oil storage of the GFA/GFB is completed.

4,When the lubrication pump stops supplying oil, the unloading valve is opened automatically, and the main oil pipe injects oil into it, and the  system pressure is lowered down.

5,The umbrella valve resets and seals the inlet oil, and the GFA/GFB oil storage block starts to eject  lubricant in the oil cavity.

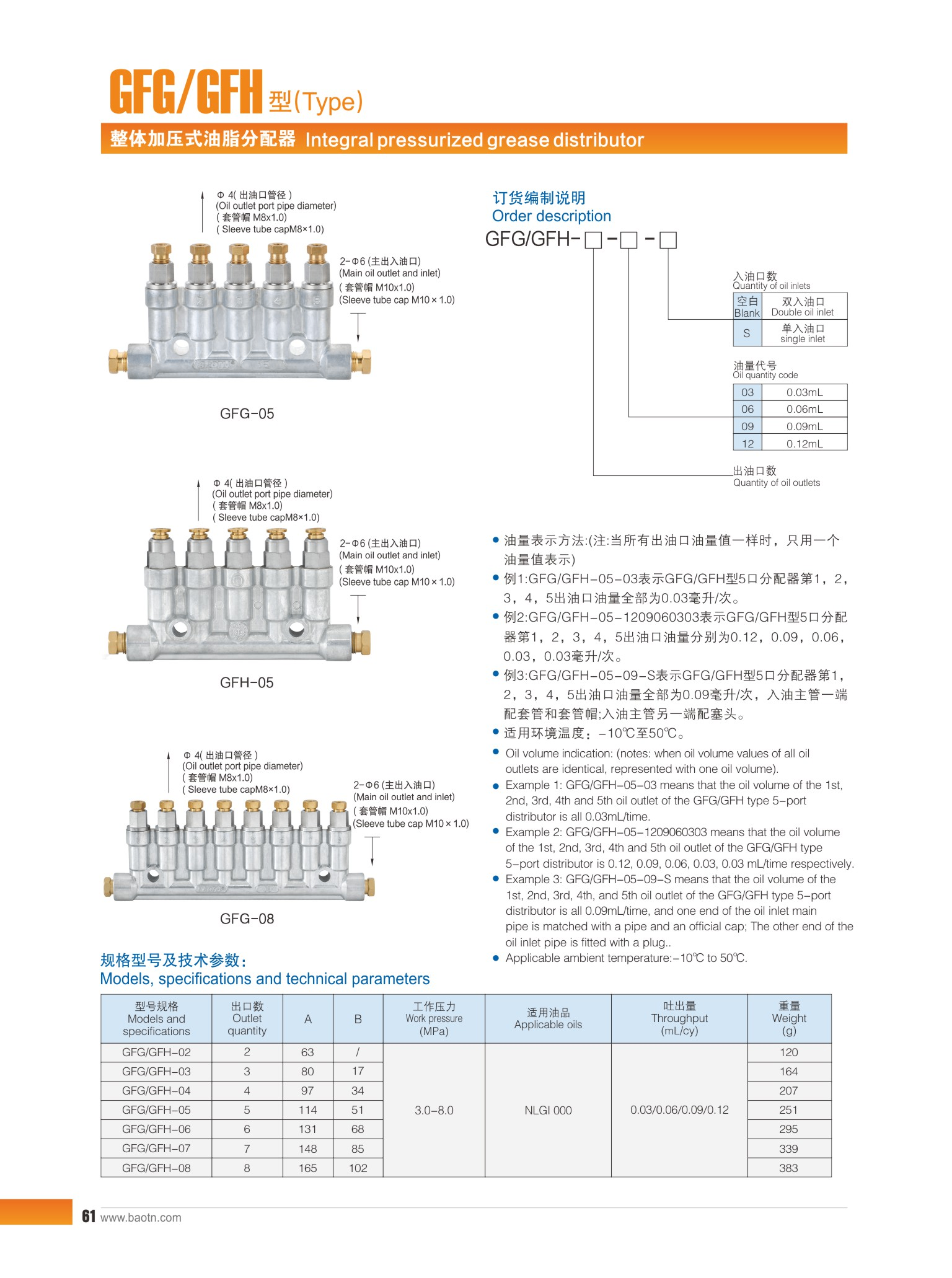

1,Oil volume indication: (notes: when oil volume values of all oiloutlets are identical, represented with one oil volume).

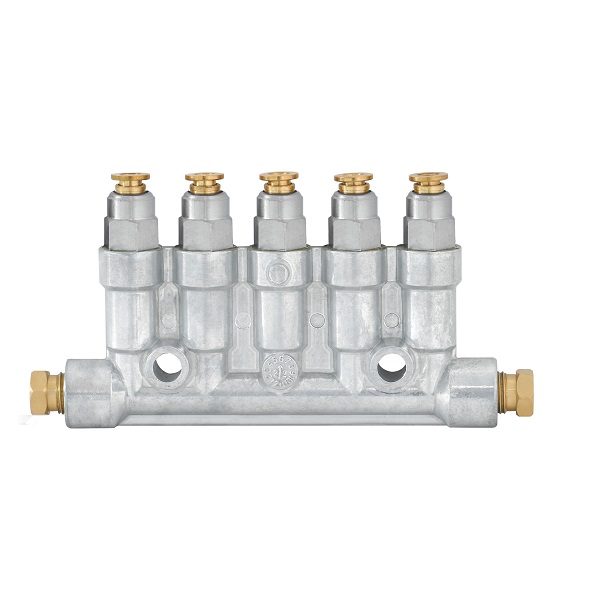

2,Example 1: GFG/GFH-05-03 means that the oil volume of the 1st,2nd, 3rd, 4th and 5th oil outlet of the GFG/GFH type 5-portdistributor is all 0.03mL/time.

3,Example 2: GFG/GFH-05-1209060303 means that the oil volumeof the 1st, 2nd, 3rd, 4th and 5th oil outlet of the GFG/GFH type5-port distributor is 0.12, 0.09, 0.06, 0.03, 0.03 mL/time respectively.

4,Example 3: GFG/GFH-05-09-S means that the oil volume of the1st, 2nd, 3rd, 4th, and 5th oil outlet of the GFG/GFH type 5-portdistributor is all 0.09mL/time, and one end of the oil inlet mainpipe is matched with a pipe and an official cap; The other end of theoil inlet pipe is fitted with a plug.

5,Applicable ambient temperature:-10°C to 50°C.
