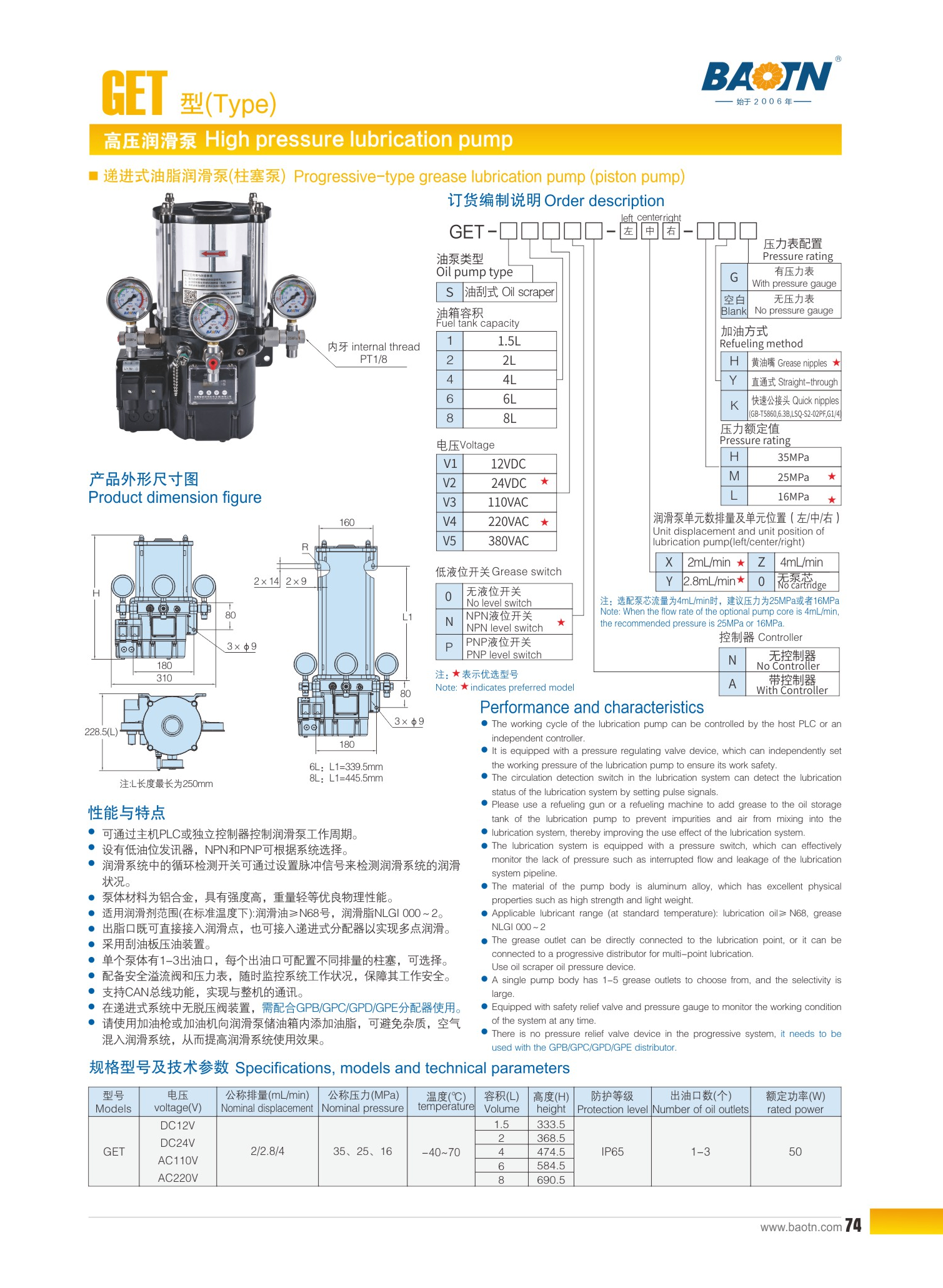

BAOTN GET Type High-Pressure Lubrication Pump – Progressive Grease Piston Pump

The BAOTN GET Type High-Pressure Lubrication Pump (Progressive Piston Pump) is a premium solution for centralized industrial lubrication systems. Built with a rugged aluminum alloy body and advanced intelligent control capabilities, this pump ensures precise, uninterrupted lubrication for heavy-duty machinery, CNC equipment, and engineering facilities. With available tank capacities ranging from 1.5L to 8L and customizable pressure outputs, the GET series adapts seamlessly to your specific operational needs.

Key Features & Performance Advantages

1. Robust & Intelligent Control

• Dual-Control Capability: Supports operation via a host PLC or an independent controller, offering flexibility for complex automation systems.

• Precision Pressure Management: Equipped with a pressure regulating valve (safety valve) to independently set and maintain optimal working pressure, ensuring system safety.

2. Advanced Monitoring & Reliability

• Cycle Detection: Features a pulse signal detection mechanism for real-time circulation monitoring, immediately identifying any oil leakage or system failures.

• Pressure & Level Alarms: Optional integrated pressure gauges and low-level switches (NPN, PNP, or FPNP) allow for proactive maintenance and alerting, preventing dry-run damage.

3. Superior Engineering & Material Quality

• Aluminum Alloy Body: Lightweight yet exceptionally strong, the pump body offers high durability in harsh industrial environments.

• Broad Media Compatibility: Works effectively with N68 lubricating oil and NLGI 000~2 grease (medium and low consistency).

4. Versatile Configuration & Expansion

• Flexible Outlet Design: A single pump body can be equipped with 1 to 5 grease outlets. You have the option to choose outlet positions, connect directly to an oil tank, or utilize an independent oil pressure supply system.

• Distributor Compatibility: Easily integrates with standard progressive distributors (GBP/GP/GBPG/GPDPG), allowing seamless expansion into multi-point lubrication.

 Ordering Model Guide (Customization Code)

Available Options:

• Oil Pump Type: S (With Scraper)

• Tank Volume: 1.5L, 2L, 4L, 6L, 8L

• Voltage: 12V, 24V, 110V, 220V, 380V (Note: 24V is the preferred model)

• Low Oil Level Switch: No switch, NPN, PNP

• Pressure Gauge: With Gauge (G), Without Gauge (Blank)

• Refueling Method: Grease gun (H), Straight-through (Y), Quick connector (K)

• Pressure Rating: 35MPa (H), 25MPa (M), 16MPa (L)

• Displacement (Unit): 2mL/min (X), 4mL/min (Z), 2.8mL/min (Y),No cartridge(0)

• Controller: No controller (N), With controller (A)

Performance and characteristics

1,The working cycle of the lubrication pump can be controlled by the host PLC or anindependent controller.

2,It is equipped with a pressure regulating valve device, which can independently setthe working pressure of the lubrication pump to ensure its work safety.

3,The circulation detection switch in the lubrication system can detect the lubricationstatus of the lubrication system by setting pulse signals.

4,Please use a refueling gun or a refueling machine to add grease to the oil storagetank of the lubrication pump to prevent impurities and air from mixing into the lubrication system, thereby improving the use effect of the lubrication system.The lubrication system is equipped with a pressure switch, which can effectively monitor the lack of pressure such as interrupted flow and leakage of the lubrication system pipeline.

5,The material of the pump body is aluminum alloy, which has excellent physicalproperties such as high strength and light weight.

6,Applicable lubricant range (at standard temperature): lubrication oil ≥ N68, greaseNLGI 000~2

7,The grease outlet can be directly connected to the lubrication point, or it can beconnected to a progressive distributor for multi-point lubrication.Use oil scraper oil pressure device.

8,A single pump body has 1-5 grease outlets to choose from, and the selectivity islarge.

9,Equipped with safety relief valve and pressure gauge to monitor the working conditionof the system at any time.There is no pressure relief valve device in the progressive system, it needs to beused with the GPB/GPC/GPD/GPE distributor.

Applications

• CNC Machining Centers & Milling Machines

• Construction & Engineering Machinery

• Automated Assembly Lines & Conveyors

• Wind Turbine Lubrication Systems

• Heavy Industrial Presses

Why Choose BAOTN?

Founded in 2006, BAOTN Intelligent Lubrication Technology (Dongguan) Co., Ltd. is a trusted manufacturer specializing in industrial lubrication systems. We combine advanced engineering with strict quality control to provide products that deliver prolonged equipment life, reduced downtime, and optimized maintenance costs. All our pumps undergo rigorous testing to meet international standards.
