GEN-1 Lubrication Pump System Progressive grease lubrication pump

Warranty period: 1 year
Supply capacity: 10,000/piece per month
Minimum order quantity: 1/piece

The system is configured with progressive distributor. GPA、 GPB、GPC、GPD、GPE Grease lubrication system.

Product Description

Attentions for installation and use

1,The oil outlet pipeline orifices shall be cut smooth, make sure the connection is intact and no nil leakage.

2,In the process of installing, please ensure that interior of the pipeline is clean.

3,Please use the correct, clean and impurity-free NLGI 000-2 oil grease.

4,Applicable temperature -40℃-70℃. Please refill oil from the correct oil refilling orifice.

5,Do not open the oil block to refill oil above the oil cup.

6,Please notice environmental temperature, adjust viscosity of oil products.

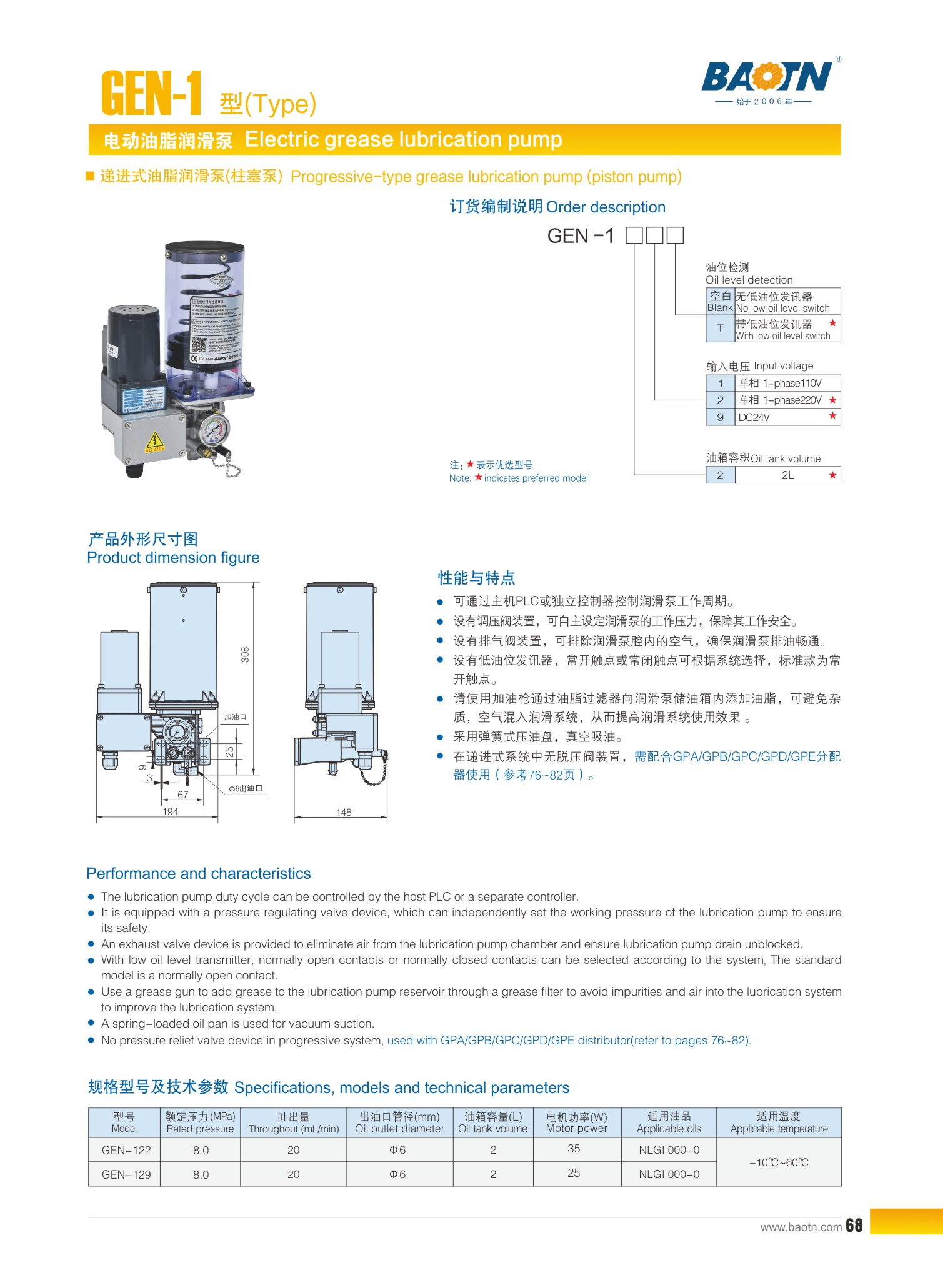

Specifications, models and technical parameters

Performance and features

Performance and characteristics

1，The lubrication pump duty cycle can be controlled by the host PLC or a separate controller.

2，It is equipped with a pressure regulating valve device, which can independently set the working pressure of the lubrication pump to ensure its safety.

3，An exhaust valve device is provided to eliminate air from the lubrication pump chamber and ensure lubrication pump drain unblocked.

4，With low oil level transmitter, normally open contacts or normally closed contacts can be selected according to the system,

5，The standard model is a normally open contact. Use a grease gun to add grease to the lubrication pump reservoir through a grease filter to avoid impurities and air into the lubrication system to improve the lubrication system.

6， A spring-loaded oil pan is used for vacuum suction. No pressure relief valve device in progressive system, used with GPA/GPB/GPC/GPD/GPE distributo.
