Oil and Gas Lubrication System Overview

The oil and gas lubrication system is mainly composed of an electric lubrication pump; an oil and gas mixer; a pneumatic processing component and a control component. The oil and gas lubrication system is a typical gas-liquid two-phase fluid. Suitable for high speed spindles or other oil and gas lubrication. The oil and gas lubrication system is mainly composed of an electric lubrication pump; an oil and gas mixer; a pneumatic processing component and a control component. The oil and gas lubrication system is a typical gas-liquid two-phase fluid. Suitable for high speed spindles or other oil and gas lubrication. The oil and gas lubrication system is mainly composed of an electric lubrication pump; an oil and gas mixer; a pneumatic processing component and a control component. The oil and gas lubrication system is a typical gas-liquid two-phase fluid. Suitable for high speed spindles or other oil and gas lubrication.

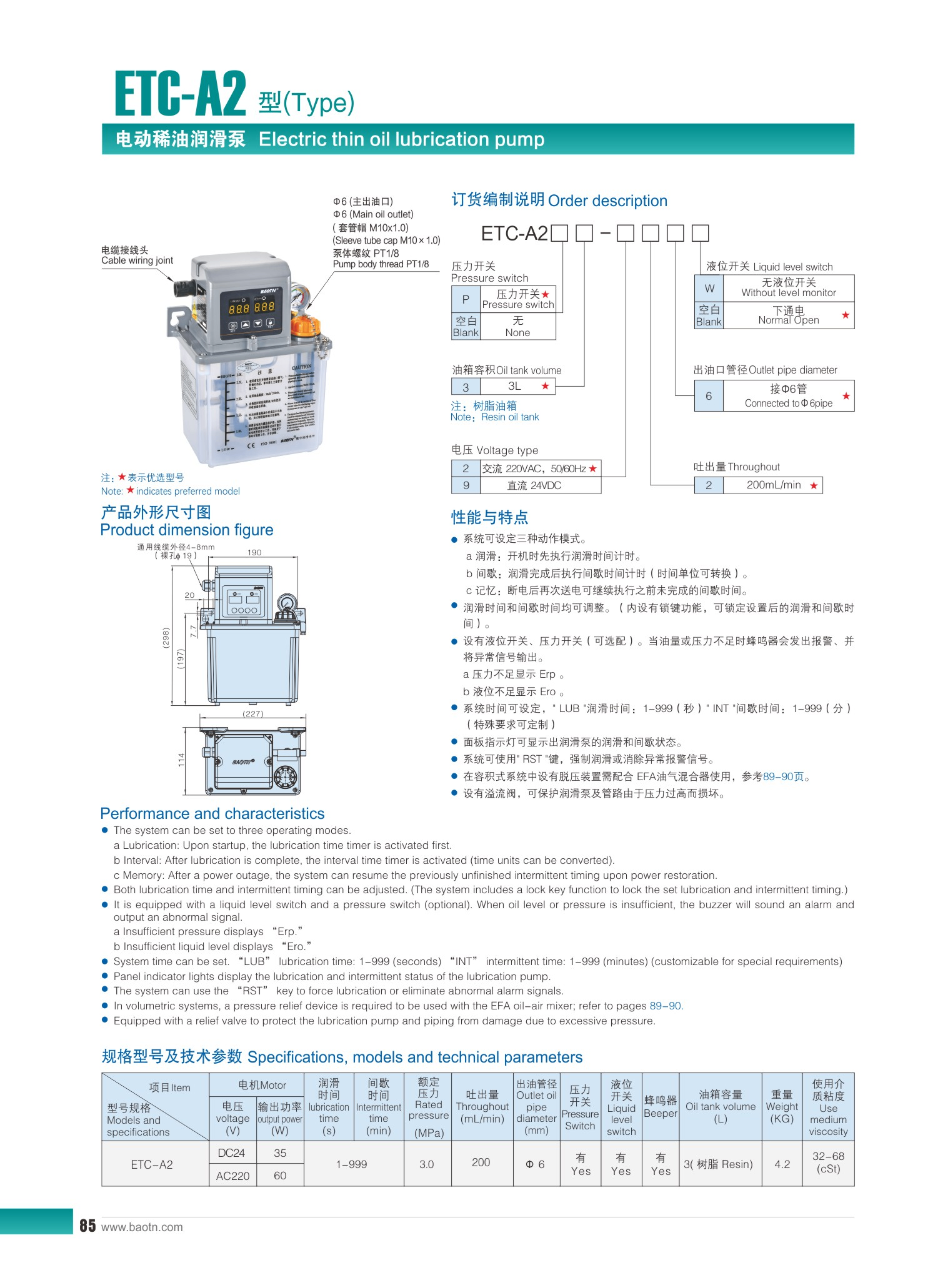

Performance and characteristics

1,The system can be set to three operating modes.

a Lubrication: Upon startup, the lubrication time timer is activated first.

b Interval: After lubrication is complete, the interval time timer is activated (time units can be converted).

c Memory: After a power outage, the system can resume the previously unfinished intermittent timing upon power restoration.

2,Both lubrication time and intermittent timing can be adjusted. (The system includes a lock key function to lock the set lubrication and intermittent timing.)  It is equipped with a liquid level switch and a pressure switch (optional).

3,When oil level or pressure is insufficient, the buzzer will sound an alarm and  output an abnormal signal.

a Insufficient pressure displays “Erp.”

b Insufficient liquid level displays “Ero.”  System time can be set.

“LUB” lubrication time: 1-999 (seconds) “INT” intermittent time: 1-999 (minutes) (customizable for special requirements)

4,Panel indicator lights display the lubrication and intermittent status of the lubrication pump.

5,The system can use the “RST” key to force lubrication or eliminate abnormal alarm signals.  In volumetric systems, a pressure relief device is required to be used with the EFA oil-air mixer.

6,Equipped with a relief valve to protect the lubrication pump and piping from damage due to excessive pressure.
