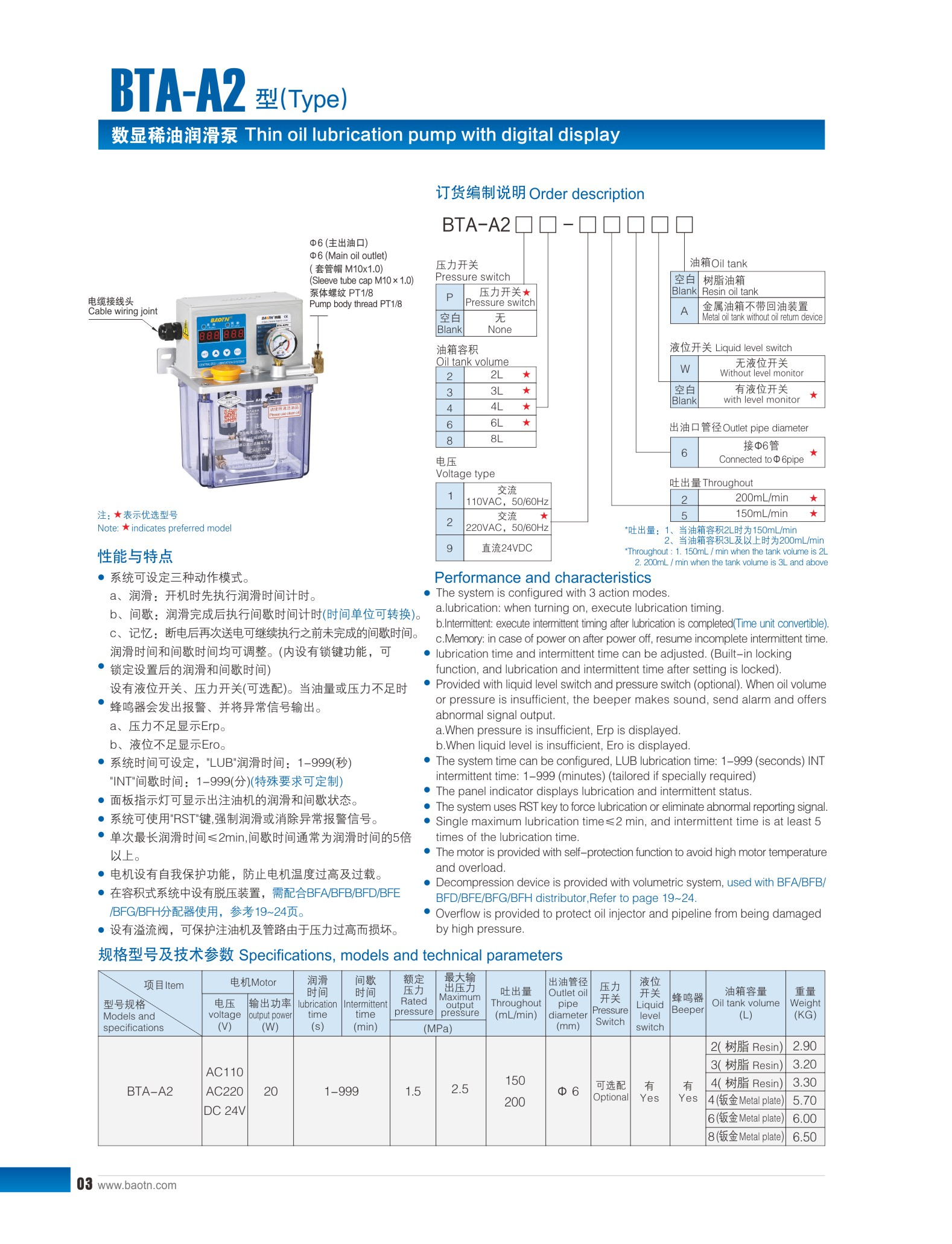

BTA-A2 Auto Lubrication Pump Type Oil Lubricating Pump with Digital Display Intermittent Electric Lubricating Gear Pump

Warranty period: 1 year
Supply capacity: 10,000/piece per month
Minimum order quantity: 1/piece

BTA-A2 thin oil lubrication pump offers 110V/220V/DC24V multi-voltage options to meet global export needs. Featuring 1.5MPa stable pressure, 2L-8L tank options, 3 working modes, and alarm functions, it is ideal for centralized lubrication in various small and medium machine tools.

Product Description

Engineered for flexible, global voltage adaptability.

The BTA-A2 industrial lubrication pump stands out with its excellent voltage compatibility (including 110V, 220V, and 24V), making it the preferred choice for cross-regional equipment integrations and export orders. We specifically retain the 2L compact tank option, offering a perfect lubrication solution for small automated equipment with limited installation space. Operating at a standard 1.5MPa rated pressure, it guarantees stable output while maintaining excellent energy efficiency."

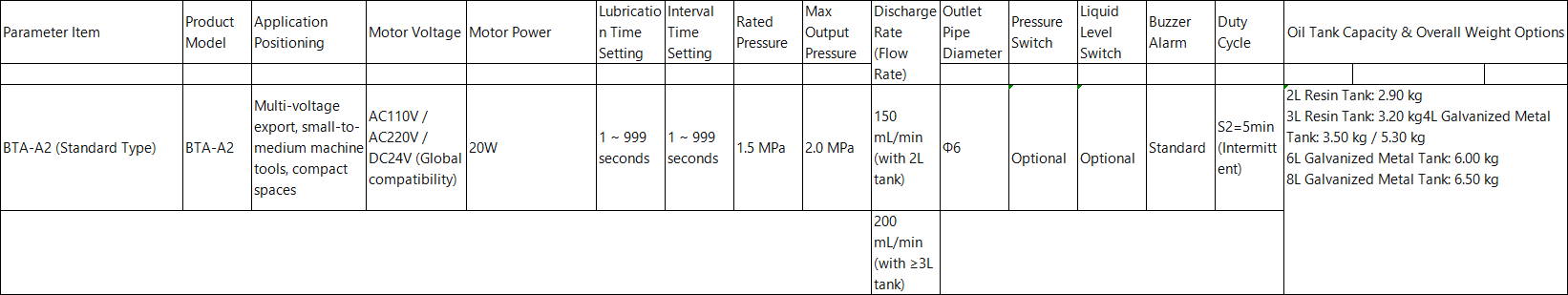

Specifications, models and technical parameters

Performance and features

Performance and characteristics

1,The system is configured with 3 action modes.

a.lubrication: when turning on, execute lubrication timing.

b.Intermittent: execute intermittent timing after lubrication is completed(Time unit convertible).

c.Memory: in case of power on after power off, resume incomplete intermittent time.

lubrication time and intermittent time can be adjusted. (Built-in locking function, and lubrication and intermittent time after setting is locked). 2,Provided with liquid level switch and pressure switch (optional). When oil volume or pressure is insufficient, the beeper makes sound, send alarm and offers abnormal signal output.

a.When pressure is insufficient, Erp is displayed.

b.When liquid level is insufficient, Ero is displayed.

3,The system time can be configured, LUB lubrication time: 1-999 (seconds) INT intermittent time: 1-999 (minutes) (tailored if specially required) .

4,The panel indicator displays lubrication and intermittent status.

5,The system uses RST key to force lubrication or eliminate abnormal reporting signal.

6,Single maximum lubrication time≤2 min, and intermittent time is at least 5 times of the lubrication time.

7,The motor is provided with self-protection function to avoid high motor temperature and overload.

8,Decompression device is provided with volumetric system, used with BFA/BFB/ BFD/BFE/BFG/BFH distributor. Overflow is provided to protect oil injector and pipeline from being damaged by high pressure.
