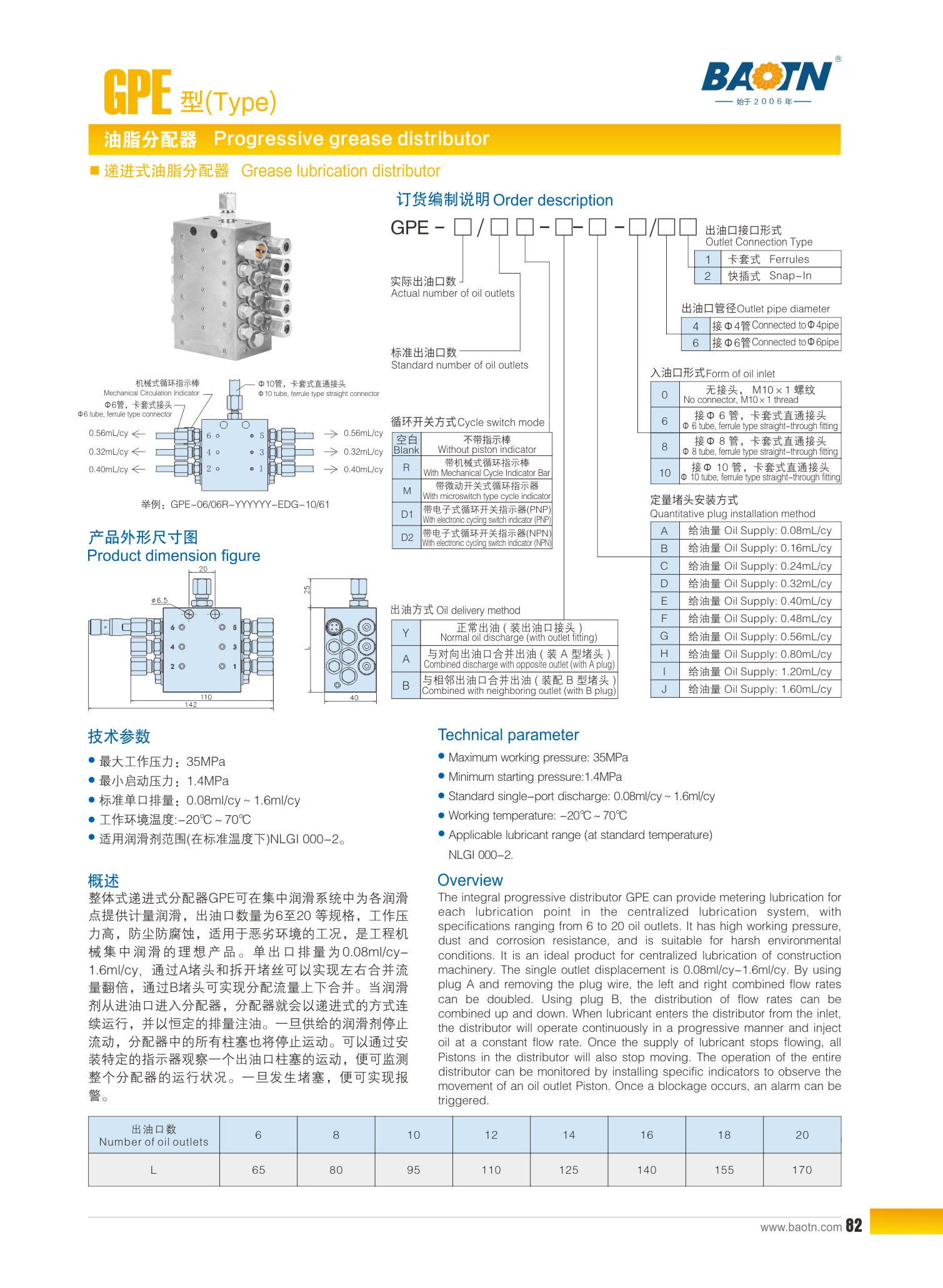

The integral progressive distributor GPE can provide metering lubrication for  each lubrication point in the centralized lubrication system, with specifications ranging from 6 to 20 oil outlets. It has high working pressure,  dust and corrosion resistance, and is suitable for harsh environmental  conditions. It is an ideal product for centralized lubrication of construction  machinery. The single outlet displacement is 0.08ml/cy-1.6ml/cy. By using  plug A and removing the plug wire, the left and right combined flow rates  can be doubled. Using plug B, the distribution of flow rates can be  combined up and down. When lubricant enters the distributor from the inlet,  the distributor will operate continuously in a progressive manner and inject  oil at a constant flow rate. Once the supply of lubricant stops flowing, all  Pistons in the distributor will also stop moving. The operation of the entire  distributor can be monitored by installing specific indicators to observe the  movement of an oil outlet Piston. Once a blockage occurs, an alarm can be  triggered.

Technical parameter

1,Maximum working pressure: 35MPa

2,Minimum starting pressure:1.4MPa

3,Standard single-port discharge: 0.08ml/cy～1.6ml/cy

4,Working temperature: -20℃～70℃

5,Applicable lubricant range (at standard temperature) NLGI 000-2.
