Attentions for system installation

1,Oil pipes are cut in orderly to ensure the pipelines are connected  well without leakage; otherwise, the pipeline may leak oil slowly,  cannot stock pressure, and the distributor cannot store oil or eject  oil as usual.

2,Keep interior of the pipeline clean in installation, and the  lubrication pump and main oil pipe cannot be installed with any  check valve devices.

3, Please use any high-quality and clean new lubricant, and the  best general viscosity is NLGI 000-0.

4,Oil product with unique  feature or alkali or acid features  Applicable temperature 0-50℃.

5,Please notice changes of environmental temperature, adjust oil  viscosity, 000 oil product cannot be used under the temperature  of 15℃ , and 00~0 oil product shall be used above the  temperature of 30℃.

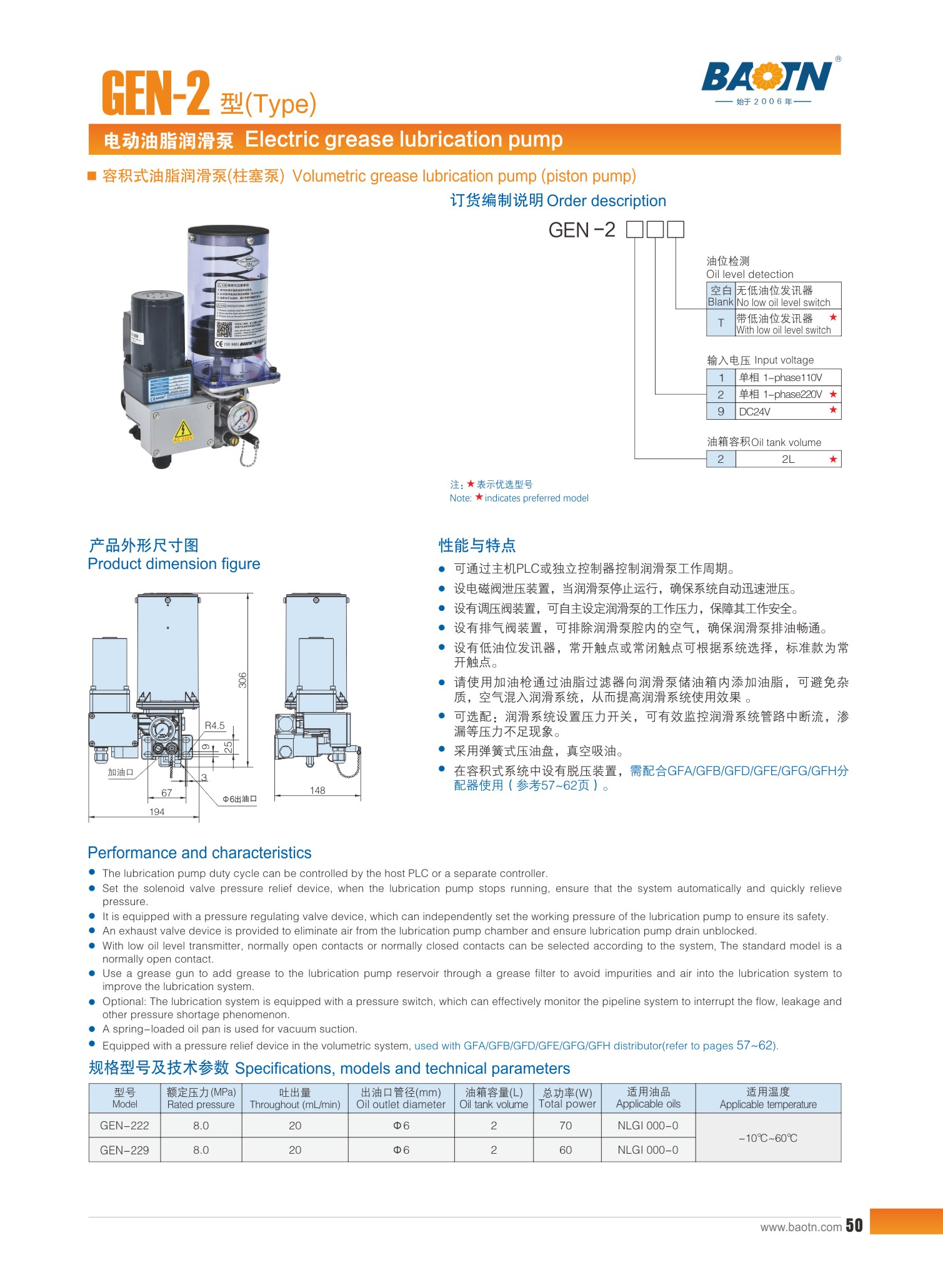

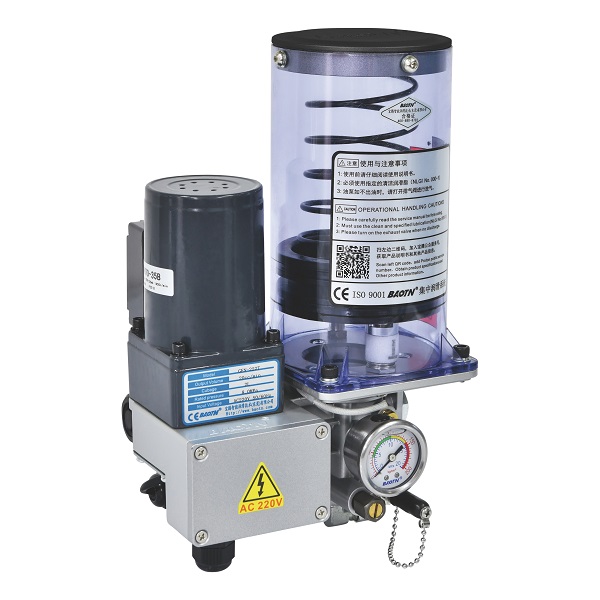

Performance and characteristics

1,The lubrication pump duty cycle can be controlled by the host PLC or a separate controller.

2,Set the solenoid valve pressure relief device, when the lubrication pump stops running, ensure that the system automatically and quickly relieve  pressure.

3,It is equipped with a pressure regulating valve device, which can independently set the working pressure of the lubrication pump to ensure its safety.

4,An exhaust valve device is provided to eliminate air from the lubrication pump chamber and ensure lubrication pump drain unblocked.

5,With low oil level transmitter, normally open contacts or normally closed contacts can be selected according to the system,

6,The standard model is a  normally open contact. Use a grease gun to add grease to the lubrication pump reservoir through a grease filter to avoid impurities and air into the lubrication system to  improve the lubrication system.

7,Optional: The lubrication system is equipped with a pressure switch, which can effectively monitor the pipeline system to interrupt the flow, leakage and  other pressure shortage phenomenon.

8,A spring-loaded oil pan is used for vacuum suction.

9,Equipped with a pressure relief device in the volumetric system, used with GFA/GFB/GFD/GFE/GFG/GFH distributor.
