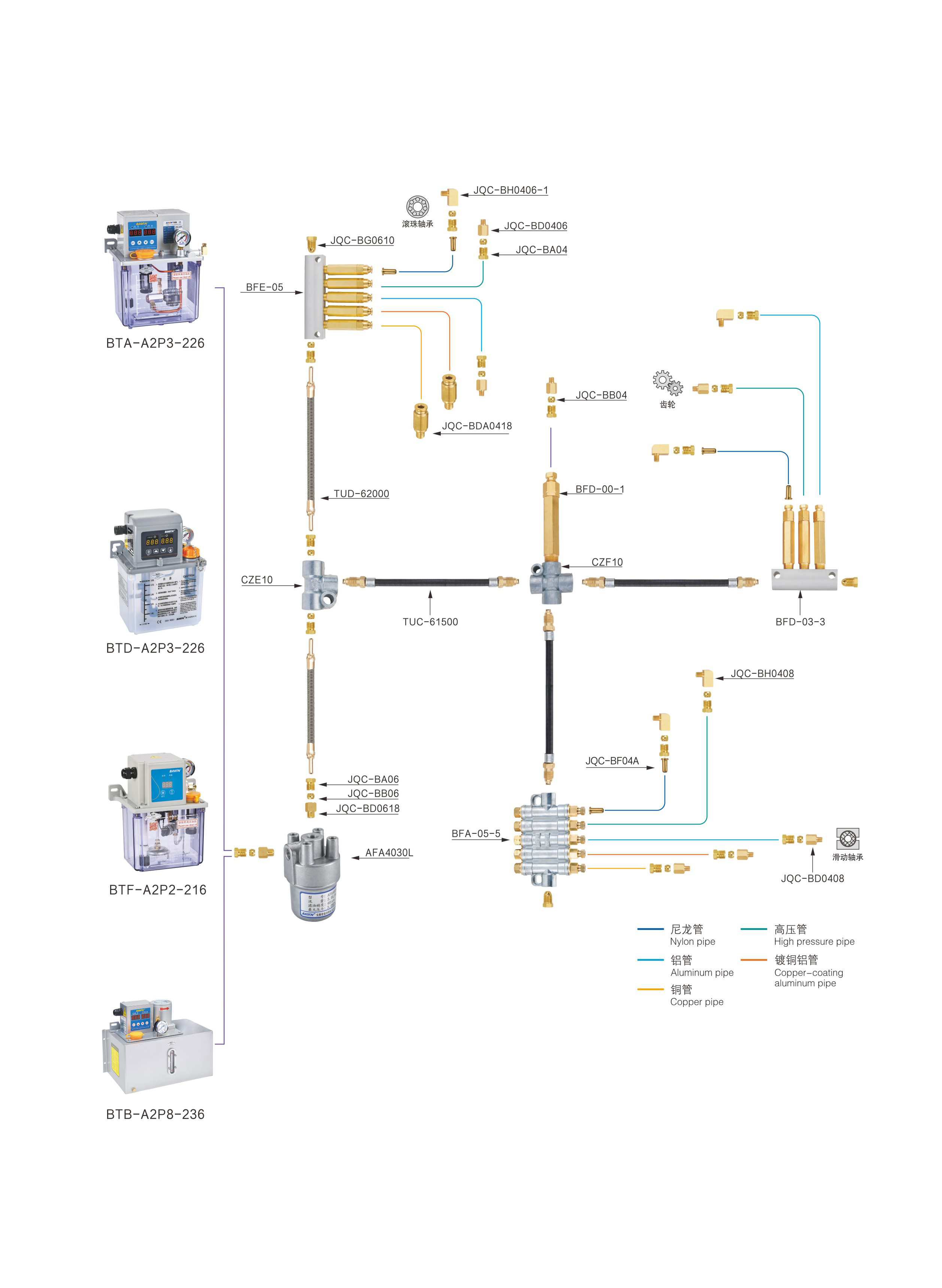

Volumetric centralized thin oil lubrication system piping diagram

Characteristic of  Volumetric centralized thin oil lubrication system


1,The lubricant is conveyed to lubrication points accurately.

2,Oil delivery quantities of the quantified holes are not subject to viscosity, temperature and oil injection time.

3,Oil delivery volume of volumetric distribution of the same specifications are not subject to installation location and height etc.

4,Oil volumes of the lubrication points are measured, and the volumetric system is economical and more energy saving in practice.

Volumetric centralized thin oil lubrication system piping diagram

RELATED PRODUCTS

BFA Thin Oil Dstributor

BFA Thin Oil Dstributor

BFA/BFB-05-53235 means that outlet oil volumes of outlets 1, 2, 3, 4 and 5 of 5-position distributors with model of BFA are 0.5, 0.3, 0.2, 0.3 and 0.5mL/time.
BTA-A2   Auto Lubrication Pump with Digital Display

BTA-A2 Auto Lubrication Pump with Digital Display

BTA-A2 thin oil lubrication pump offers 110V/220V/DC24V multi-voltage options to meet global export needs. Featuring 1.5MPa stable pressure, 2L-8L tank options, 3 working modes, and alarm functions, it is ideal for centralized lubrication in various small and medium machine tools.
JQC Lubrication copper joint Right-angle joint for lubrication system

JQC Lubrication copper joint Right-angle joint for lubrication system

parts of centralized lubrication system
BTA-C2 PLC Control Electric Gear oil Pump

BTA-C2 PLC Control Electric Gear oil Pump

Gear pump (Shaded Pole Motor): applicable for medium and smallsized machinery and equipment with main oil pipeline length of 25 meters, lubrication points of maximum 50 points.
BFD Thin Oil Distributor

BFD Thin Oil Distributor

BFD/BFE-05-53235 means that outlet oil volumes of outlets 1, 2, 3, 4 and 5 of 5-position distributors with model of BFD/BFE are 0.5, 0.3, 0.2, 0.3 and 0.5mL/time.
BTB-A2 High Pressure Electric Gear Pump

BTB-A2 High Pressure Electric Gear Pump

The system can set three action modes. Equipped with liquid level switch and pressure switch (optional). When the oil volume or pressure is insufficient, the buzzer will sound an alarm and output an abnormal signal. System time can be set.
BTB-C2 PLC Control Pump

BTB-C2 PLC Control Pump

Gear pump (Induction Motor): applicable for various machinery and quipment with lengthy main oil pipe and requiring large oil quantities.
BTD-A2 High-Pressure Lubrication pump

BTD-A2 High-Pressure Lubrication pump

BTD-A2 high-pressure lubrication pump is engineered for heavy machinery, delivering an ultra-high 3.0MPa output pressure with 3L-8L large capacity tanks. Digital control, 3 timing modes, reinforced body, and high pressure perfectly suit large CNC machines and heavy industrial equipment.
BFH Thin Oil Distributor

BFH Thin Oil Distributor

BFG/BFH-05- 1610050303 means that the oil volumeof the 1st, 2nd, 3rd, 4th and 5th oil outlet of the BFG/BFH type5-port distributor is 0.16, 0.1, 0.05, 0.03, 0.03 mL/time respectively
BTD-C2 PLC control  oil lubrication pump systems

BTD-C2 PLC control oil lubrication pump systems

Gear pump (Induction Motor): applicable for various machinery and quipment with lengthy main oil pipe and requiring large oil quantities.
BFF Thin Oil Distributor

BFF Thin Oil Distributor

BFF type high pressure distributor is suitable for volumetric lubrication system, the system consists of HLC lubrication pump station related connectors and other components.
